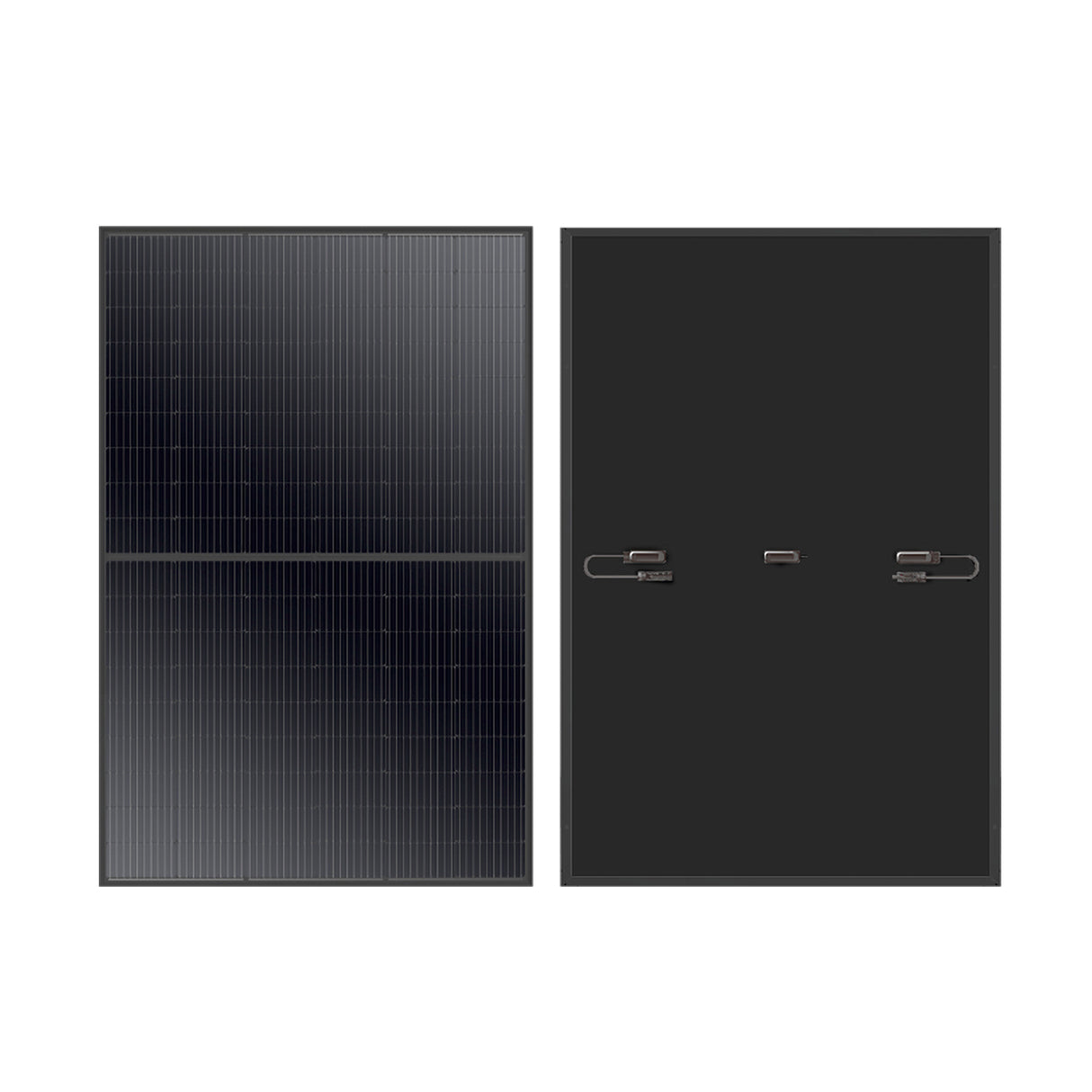

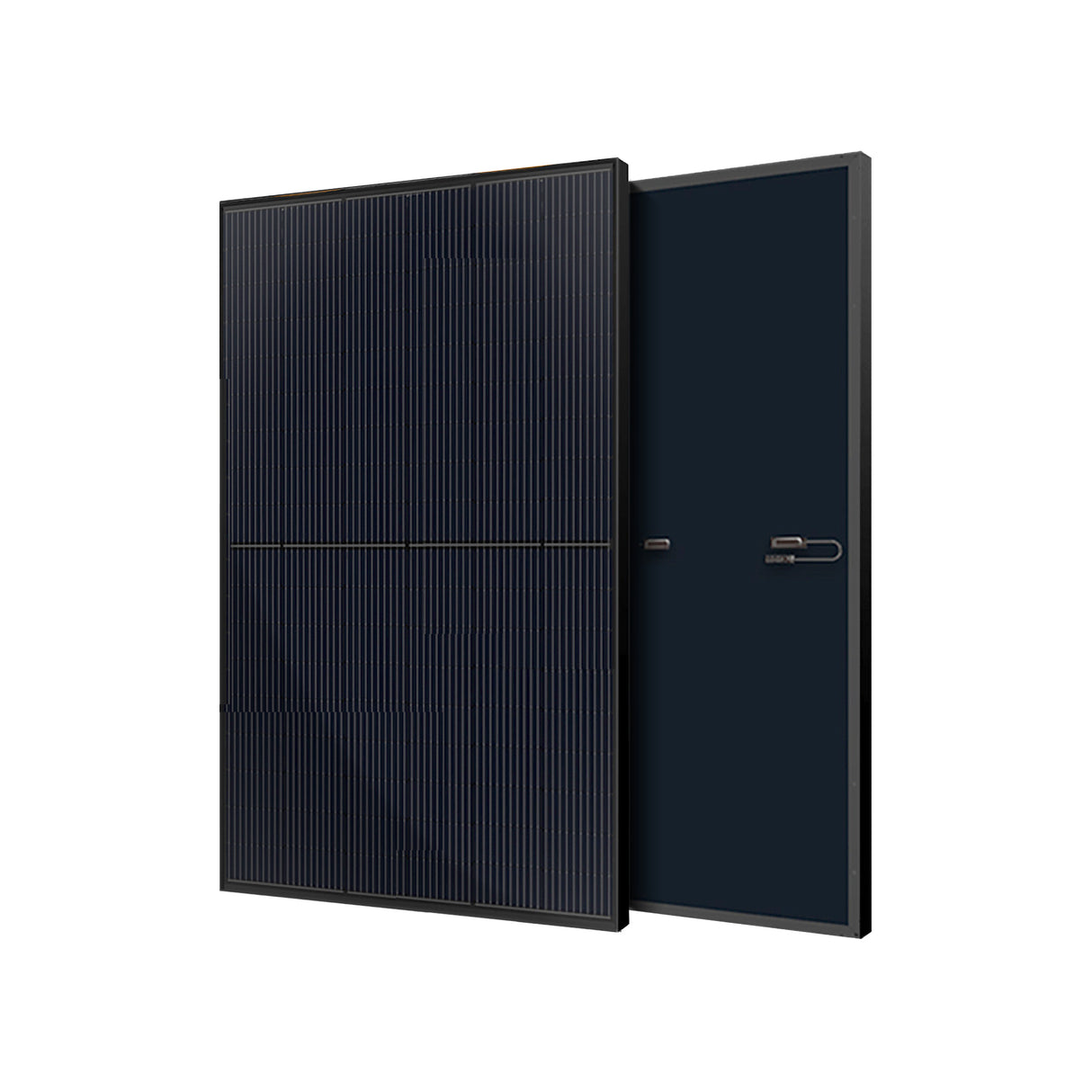

Rich Solar MEGA 400 - 400W 24V Solar Panel (8)

Description

The Rich Solar MEGA 400 is a 400W solar panel designed for grid-tie and off-grid applications, delivering reliable power for residential or agricultural setups. Its monocrystalline construction and 10-busbar cell configuration enhance efficiency and durability.

Built to endure harsh environments, this solar panel supports stable output even in low-light conditions, making it well-suited for users seeking consistent energy generation throughout varied weather situations.

Features

• 10-busbar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High-transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Specifications

• Panel Cable Length: ≈ 47 in
• Material: Tempered Glass, Aluminum, Monocrystalline Silicon
• Dimensions: 67.9 x 44.7 x 1.2 in
• Weight: 45.2 lbs
• Maximum Power (PMAX): 400W
• Maximum Power Voltage (VMP): 31.0V
• Maximum Power Current (IMP): 12.9A
• Open Circuit Voltage (VOC): 37.1V
• Short Circuit Current (ISC): 13.7A
• Maximum System Voltage (VMAX): 1500VDC
• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 25A

Downloads

• Download Manual (PDF)
