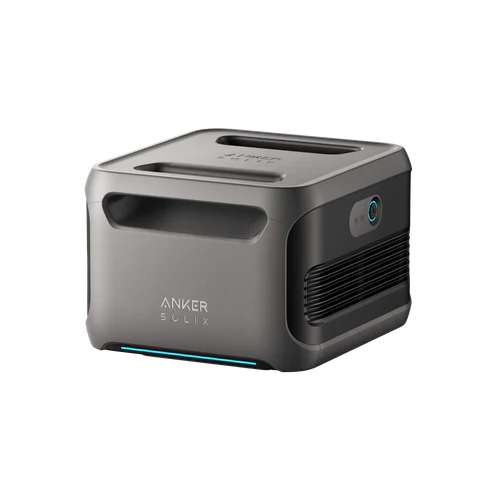

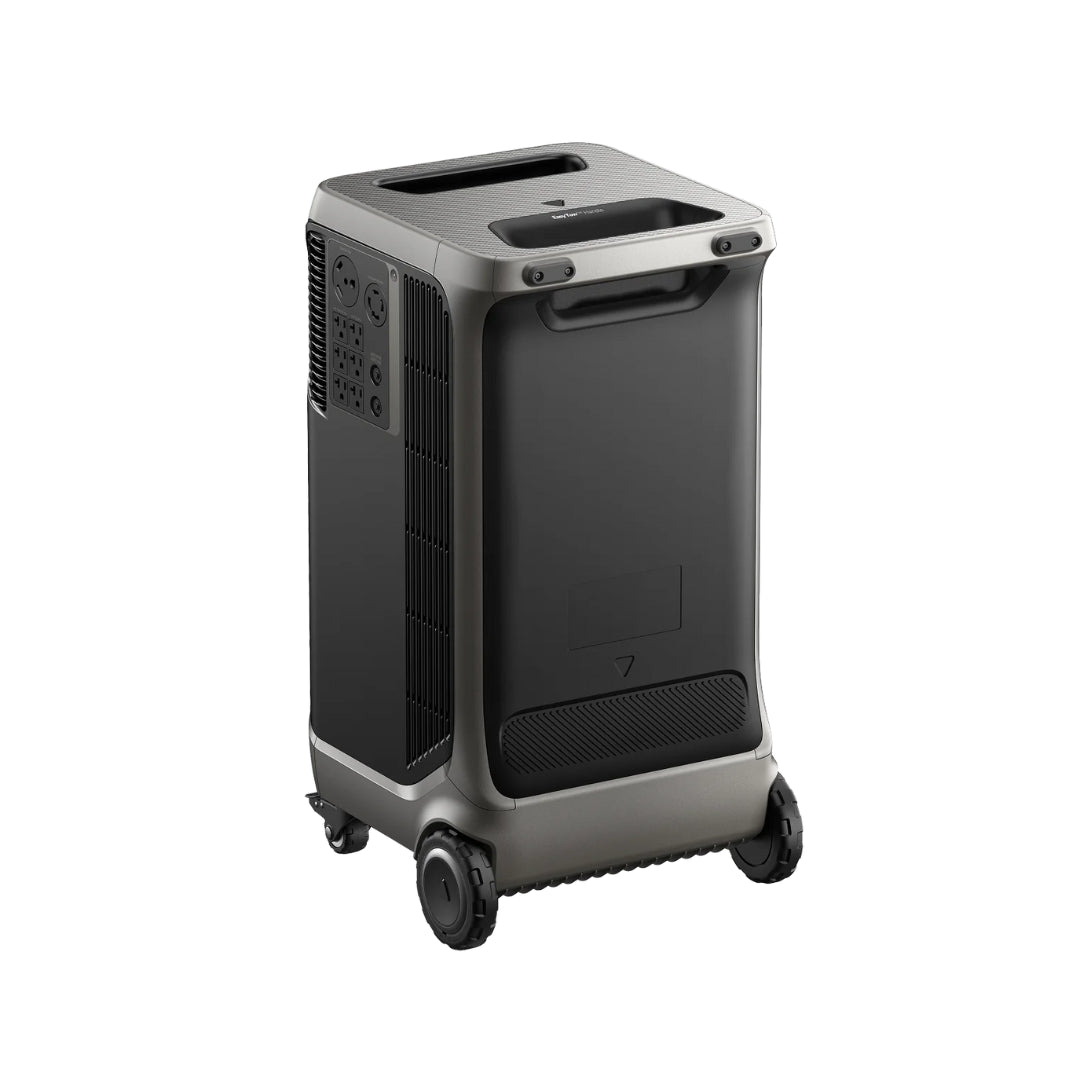

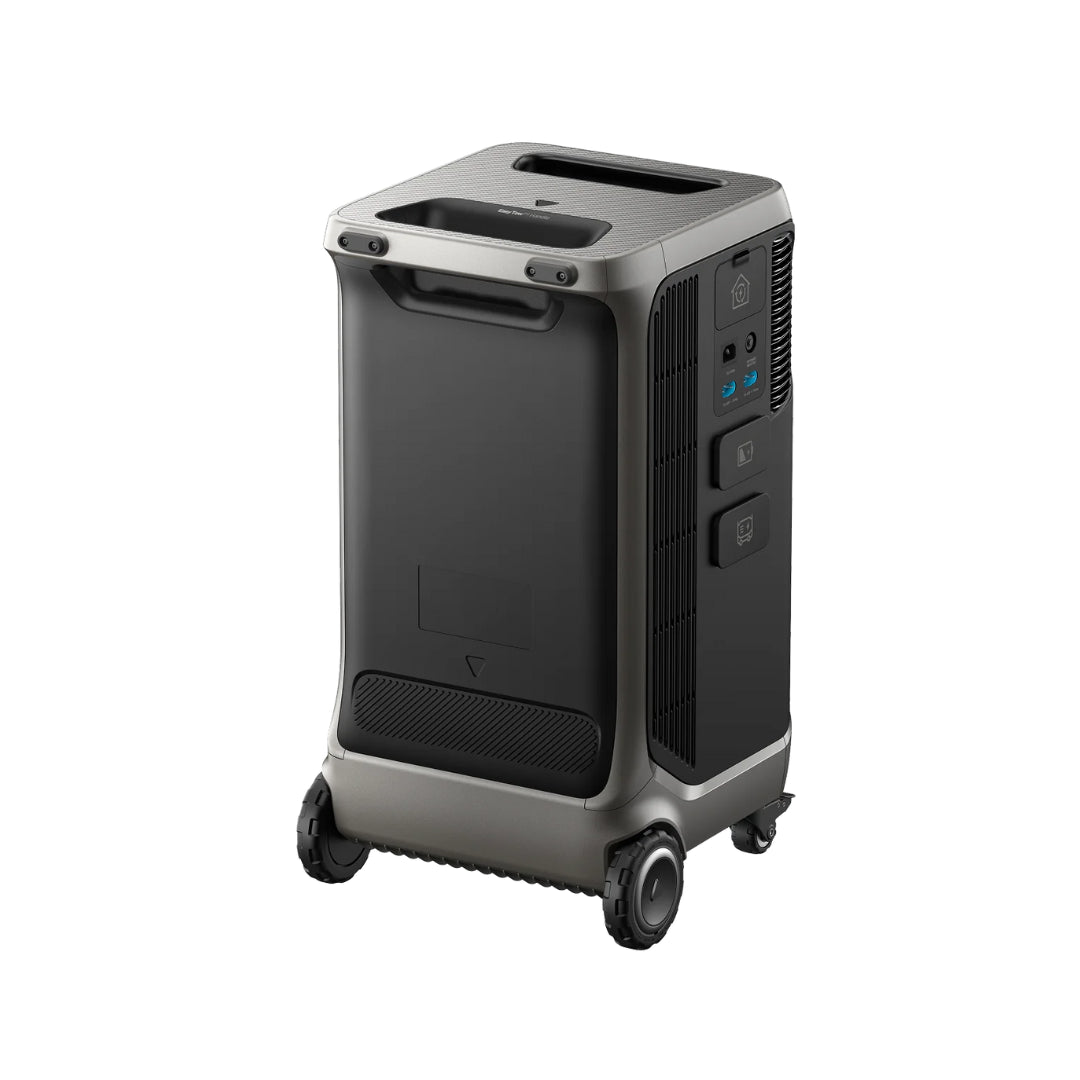

Anker SOLIX F3800 Plus Power Station + Expansion Battery (7680Wh Combined)
Choose options
Description
- Scalable 120V/240V Power: Massive 3.84kWh capacity, expandable to 26.9kWh, with a 6,000W output designed to run heavy-duty appliances like central AC and dryers.
- Rapid & Versatile Charging: Features an upgraded 3,200W solar input and integrated ports for direct EV charging (NEMA 14-50) and RV power (L14-30).
-
Decade-Long Reliability: Built with EV-grade LFP batteries for a 10-year lifespan, including smart app monitoring and an industry-leading 5-year warranty.
This unit provides over seven thousand six hundred watt hours. The combined battery system delivers power for multiple home days.
The system capacity expands up to fifty three kilowatt hours. You may connect up to six extra expansion battery units.
The power station offers six thousand watts of total output. It supports one hundred twenty and two hundred forty volts.
This system accepts up to three thousand two hundred watts. Dual solar inputs allow for rapid charging during sunny days.
Built-in ports include a NEMA L14-30R for heavy home loads. Anker included a TT-30R port for direct recreational vehicle power.
The main power station weighs one hundred thirty six pounds. Each expansion battery unit weighs seventy three total pounds.
Anker offers a full five year warranty for this product. Customers receive lifetime support for their home energy storage system.
The internal LFP batteries last for over three thousand cycles. These EV-grade cells ensure a lifespan of over ten years.
The Anker SOLIX F3800 Plus powers this outdoor workshop. This powerful unit runs high energy equipment with ease.
Users can monitor energy usage through the Anker smart app. The system starts charging automatically before severe storms arrive nearby.
Specification
Anker SOLIX F3800 Plus Portable Power Station
- Capacity: 3,840Wh
- Battery Chemistry: LFP, 3,000+ cycles
- Expandable Capacity: Up to 6 × Expansion Batteries (3.84kWh each)
- AC Input: 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE
- AC Input Power (Charging): 1800W Max
- AC Input Power (Bypass Mode): 1440W Max
- Solar Panel Input: 11-165V ⎓ 17A Max (1600W Max Each)
- Anker SOLIX Generator Port: 60V Max, 120A Max
- Car Charger Output: 12V ⎓ 10A
- HPP & Generator Adapter Port: 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE
- AC Output Power (Total): 6000W Max
- AC Output: 120V~ 20A Max, 60Hz, 2400W Max
- AC Output (NEMA L14-30R): 120V/240V~ 25A Max, 60Hz, 6000W Max
- USB-A Output: 5V ⎓ 2.4A (12W Max Per Port)
- USB-C Output: 100W Max Per Port (5V/9V/15V/20V)
- Dimensions (L×W×H): 27.6×15.3×15.6 in (Including wheels)
- Net Weight: 136.7 lb
- Warranty: 5-year warranty
BP3800 Expansion Battery
- Capacity: 3,840Wh
- Weight: 72.8 lb
Product 1 (With Generator Bypass)
- Generator Bypass: Yes
- AC Output Power: 6,000W (via generator bypass)
- Input Voltage: 120V/240V
- Solar Input Power: 11-165V = 17A Max (1600W Max Each)
- Solar Input: 3200W
- Maximum AC Input Power: 6,000W
- DC Input: 2x Solar Input Port, 1x 60V/120A DC Input
- Special AC Sockets: 1x NEMA TT-30 (3000W Max, 120V), 1x L14-30 (6000W Max, 240V)
Product 2 (Without Generator Bypass)
- Generator Bypass: No
- AC Output Power: 6,000W
- Input Voltage: 120V/240V
- Solar Input Power (Firmware 1.7.8): 11-32V = 10A; 32V-60V = 25A (1200W Max)
- Solar Input Power (Firmware 2.1.1): 11-15V = 10A; 15V-60V = 27A Max (1200W Max)
- Solar Input: 2400W (via XT-60)
- Maximum AC Input Power: 1,800W
- DC Input: 2x XT-60
- Special AC Sockets: 1x NEMA 14-50 (6000W Max, 240V), 1x L14-30 (6000W Max, 240V)
